Rated for Aquariums up to 3000 Gallons
Footprint: 32.3" x 30.7" | Body Diameter: 20" | Height: 43.3"
Pumps: X2- Reef Octopus Bubble Blaster 10000s
- Requires a 3380-4680 GPHFeed Pump to Operate
Light Commercial Protein Skimmer
Great for large marine systems: 1050-3000 gallons

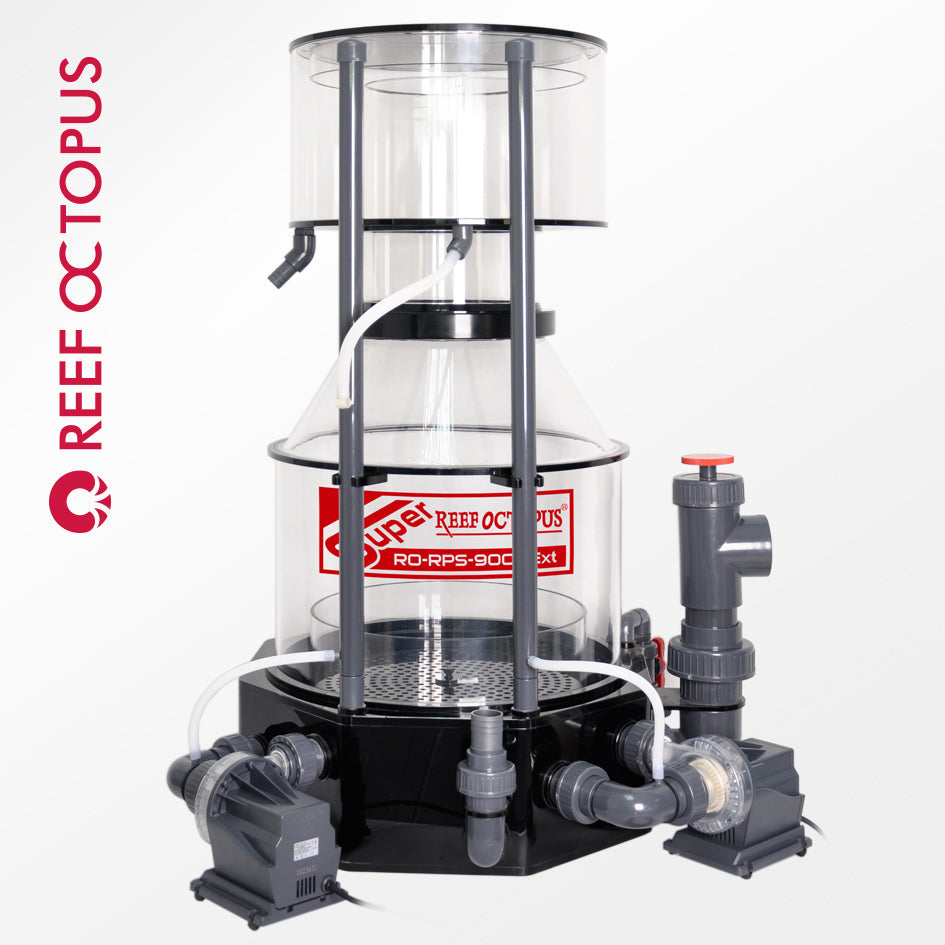

The Super Reef Octopus 9000ext is the largest of the highly efficient Light Commercial SRO line of protein skimmers with a 20" body and standing under 44" inches tall. Don't let its short stature full you, it comes equipped with dual(2) Bubble Blaster 10000 pumps that produce incredible air draw numbers and using less than 190watts total energy. Great for large home aquariums, frag farmers, small commercial displays, and store systems under 3000 gallons.
The Power
The quiet yet powerful Reef Octopus Bubble Blaster HY-10000 is a super-efficient pinwheel skimmer pump that comes backed by a 2-year warranty. Our Bubble Blaster skimmer pumps are a true innovation to the aquarium hobby. Equipped with a calcium inhibiting silicone nitride shaft and bearings our Bubble Blaster skimmer pumps the increasing life of the pump and decreasing maintenance.
While all other skimmer pumps on the market are modified water pumps from a water pump manufacturer the Bubble Blaster pumps were designed and built to be a skimmer pump! Enhanced with a digital control circuit board that controls the pumps' directional start-up and RPM speeds. This smart circuit board will shut the pump off if it detects a problem. Another unique feature is the clear volute housing which allows you to see inside the pump without having to take it apart allowing you to see if something is stuck inside the volute housing or pinwheel. The key feature of the Bubble Blaster pumps is the enormous amount of air they pull per watt. Air and water volume is the key to aggressive protein skimming and there is no other pump on the market that compares.
The Skimmer
Hybrid body skimmers have been a huge hit amongst budget-wise professionals and hobbyists due to the ideal conical transition from the body to the neck. This reduces turbulence, directs the flow gently up to the neck, and reduces head pressure off of the re-circulation pump providing enhanced performance.
Terms of purchase
This skimmer requires 8-10 week lead time and a 50% deposit upfront to begin the building of the skimmer. Skimmers can only ship by freight and are required to cover the cost of shipping. We can ship directly to the job site if desired.
Bioload Handling
The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.
(EXCLUDING PUMP)
- Heavy
- Medium
- Light
- 2000 gallons
- 2600 gallons
- 3000 gallons
SRO 9000EXT Features
- Super Efficient Filtration
- High-Performance Recirculating pumps with Max injection Venturi System
- Refined Hybrid (half cone) Skimmer Body for Greater Foamate Stabilization & Collection
- Over-Sized Collection Cup with Drain
- Bubble Dispersant Chamber
- Precision Water Level Control Output Valve
- Solid Acrylic Construction

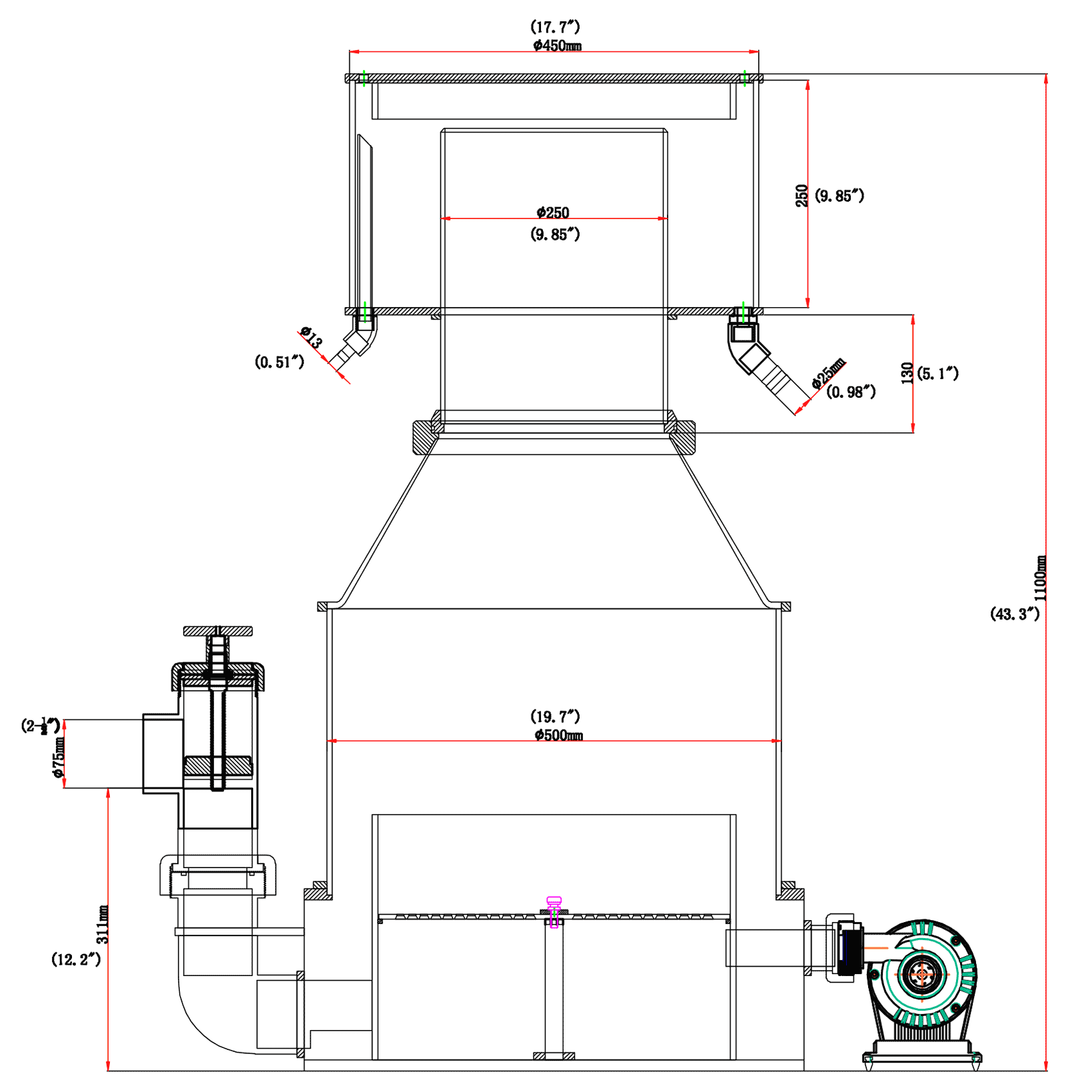

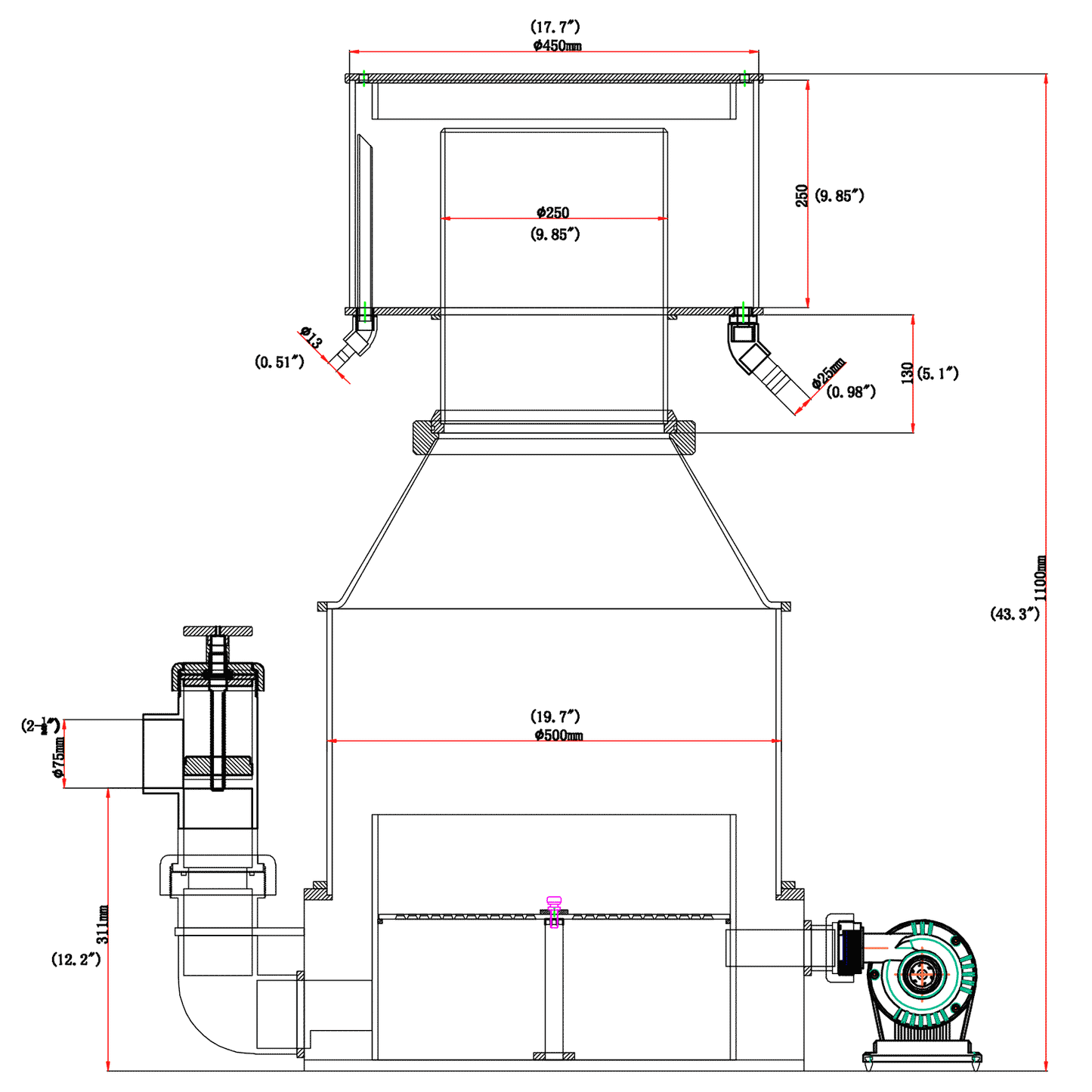

Technical Specs
Body Size: 20in

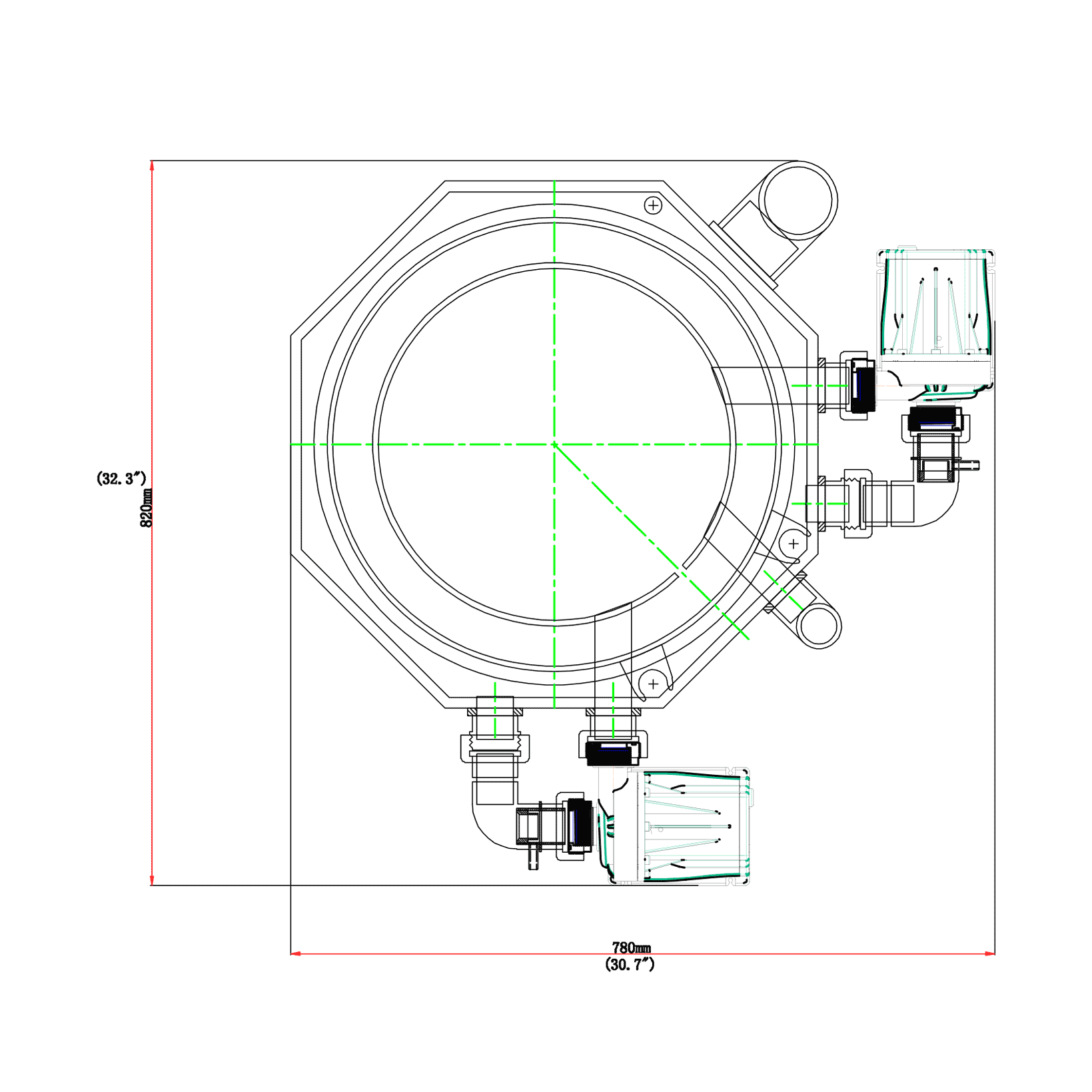

Footprint: 32.3in x 30.7in
Neck Size: 10in
Total Height: 43.3in
Output Size: 75mm \ 2.5in PVC
Output Height: 12.24in
Feed Inlet Size: 1.25in (Hose Barb/PVC)
Max Feed Rate: 5000GPH
Note: Suggested Feed Rate of 1.5-2 times the system volume but not exceeding max feed rate of 5000GPH
Pump Information

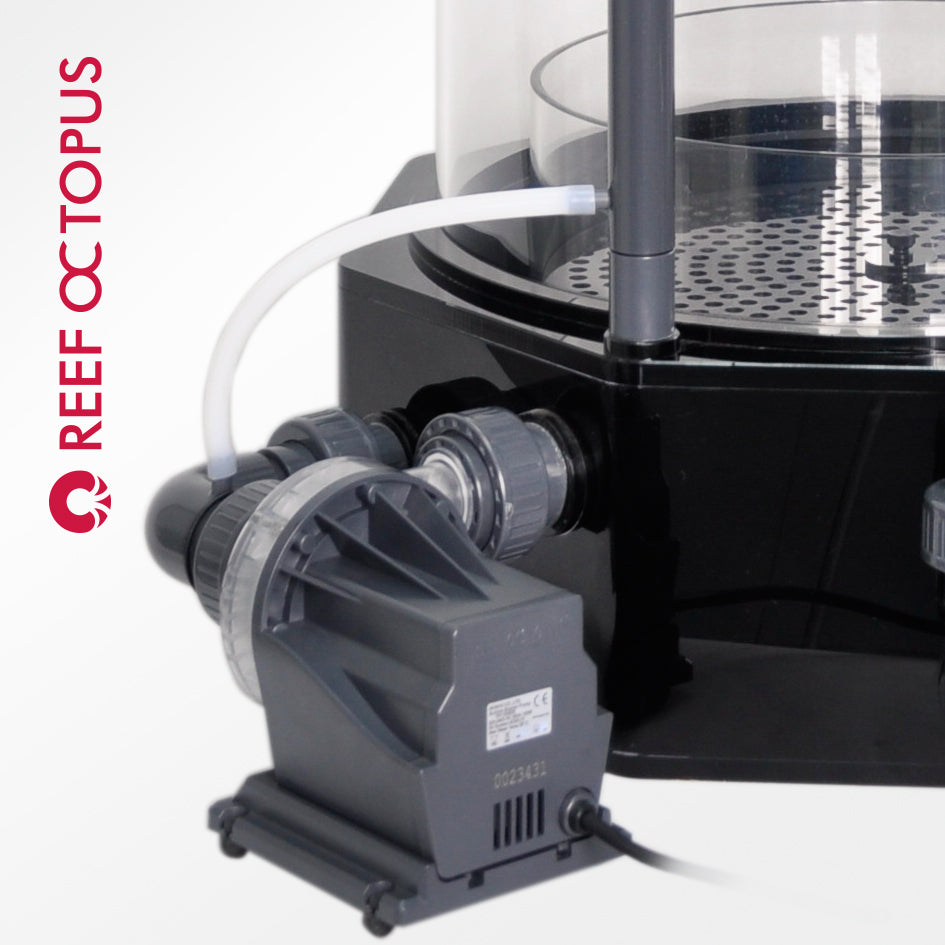

Reef Octopus Bubble Blaster HY-10000s Pinwheel Pump
Voltage: 120v/60Hz
X2 - Wattage: 125w (95w running)
X2 - Air draw: 4000 L/H (140 SCFH)
X2 - GPH: 600 - Efficiency: 95%
*Air and water results will vary depending on aquarium setup
Warranty
- 2 Year on Pump Body
- 2 Year Pump Rotor
- 1 Year on Skimmer Body
Reef Octopus can not be responsible for consequential damages arising from the installation or use of this product. Reef Octopus warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase.
CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.
*Reef Octopus reserves the right to change/modify this product without notice.
