Red Sea REEF-FRAME MAX 170 Aquarium System – 36 Gallons

A Premium, Fully Equipped Reef Aquarium with Advanced Smart Control

The Red Sea REEF-FRAME MAX 170 combines premium aquarium construction, intelligent automation, and a complete ecosystem of coordinated reefkeeping equipment in one beautifully designed saltwater aquarium system.

Featuring a 35.9-gallon ultra-clear glass display, a 10.3-gallon sump, and Red Sea's ReefControl Pro technology, the REEF-FRAME MAX 170 provides a complete foundation for a thriving reef aquarium.

The MAX configuration includes ReefLED G2 lighting, ReefWave circulation, ReefRun return pump, ReefMat automatic filtration, DC protein skimmer, and intelligent automatic top-off—all designed to work together within Red Sea's ReefBeat ecosystem.

The newly designed marine-spec plywood cabinet is available in Black, White, or the new Classic Oak finish, allowing this premium aquarium to complement virtually any interior.

Key Features

• 46.2 Gallons Total System Volume – 35.9-gallon display with 10.3-gallon sump

• Ultra-Clear Glass with Eurobracing – Strong, premium aquarium construction

• Three Cabinet Finishes – Black, White, or new Classic Oak

• Marine-Spec Plywood Cabinet – Full aquarium support with adjustable leveling feet

• ReefControl Pro Controller – Advanced smart monitoring with included pH and temperature probe

• 1 × ReefLED G2 115 Light – High-performance coral-focused lighting

• 1 × ReefWave 25 Pump – Broad cross-flow circulation up to 1,980 GPH

• ReefRun G2 4000 Return Pump – Adjustable DC return flow

• ReefMat 250 Roller Filter – Automated mechanical filtration

• REEFER DC 300 Protein Skimmer – Efficient skimming with self-leveling technology

• Digital Automatic Top-Off – Automatic water-level management with temperature monitoring

• ReefGate Precision Valve – Quiet, controlled drainage

• Slide-Out Control Panel – Organized access to aquarium electronics

• Up to 5-Year Manufacturer Warranty – With qualifying registration

Advanced ReefControl Pro Technology

The included ReefControl Pro brings connected aquarium monitoring and equipment management together through the ReefBeat app.

The system includes a ReefSense pH and temperature probe, providing monitoring of important aquarium conditions.

ReefControl Pro supports up to seven compatible ReefSense probes and sensors in total, allowing additional monitoring capabilities as your reef develops.

The included digital ATO module automatically replenishes evaporated freshwater and incorporates a level and temperature sensor.

Premium Ultra-Clear Glass & Reinforced Construction

The REEF-FRAME MAX 170 features 10mm front and bottom glass, 12mm side glass, and 8mm rear glass.

High-quality euro-silicone bonding and reinforced eurobracing provide structural strength while preserving the aquarium's clean, modern appearance.

Extra-Fortified Cabinet – Black, White & New Classic Oak

The REEF-FRAME MAX 170 includes a reinforced marine-spec plywood cabinet designed to support the full contour of the aquarium.

Adjustable leveling feet provide precise installation, while stainless steel hinges offer durability and convenient access.

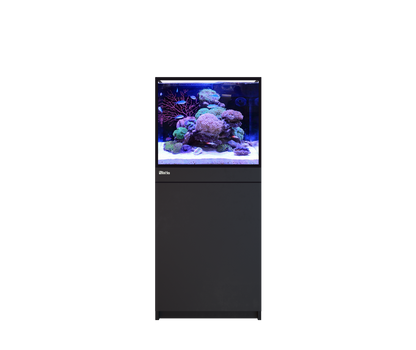

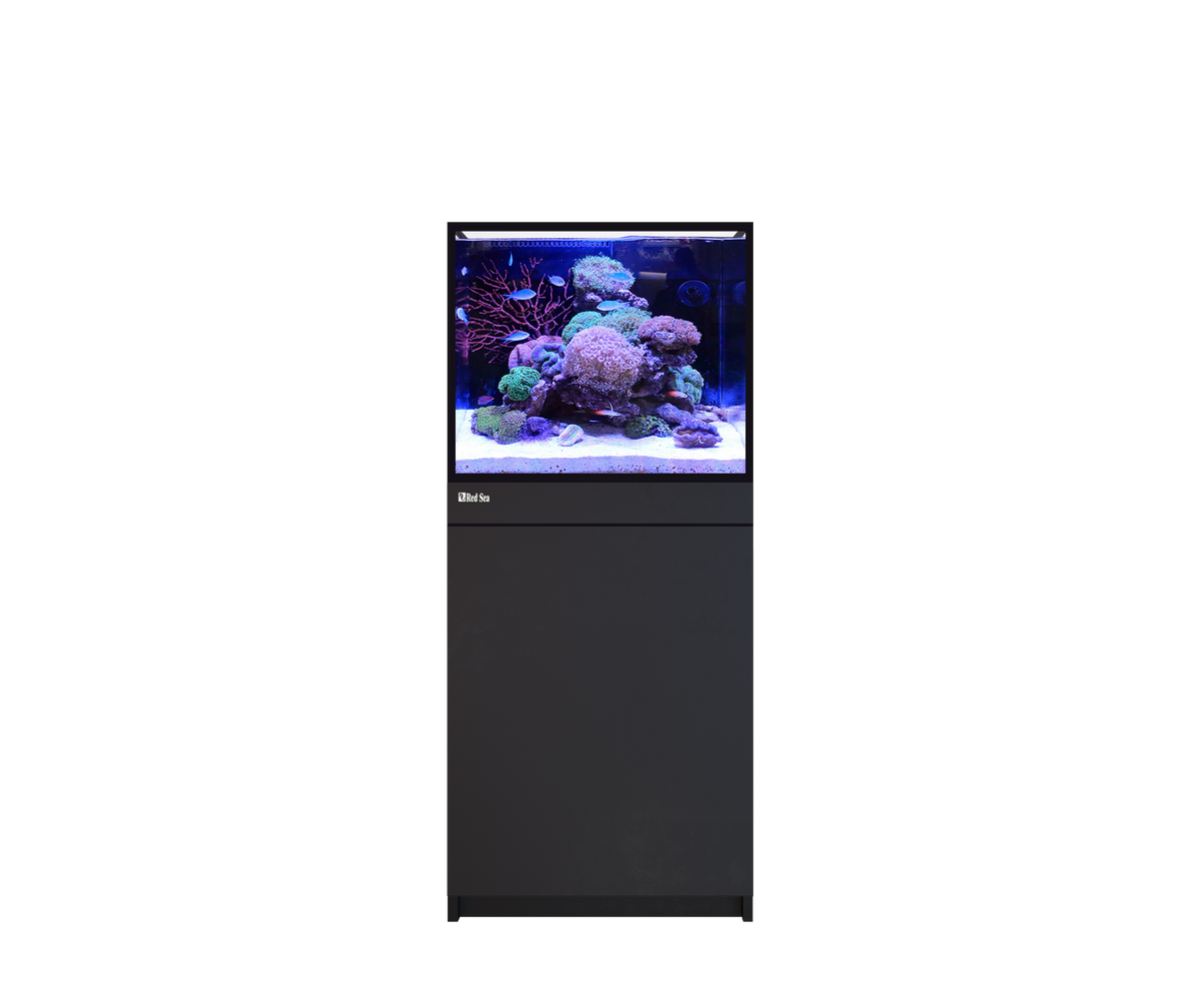

Black: A sophisticated, modern finish that emphasizes the vibrant colors of the reef.

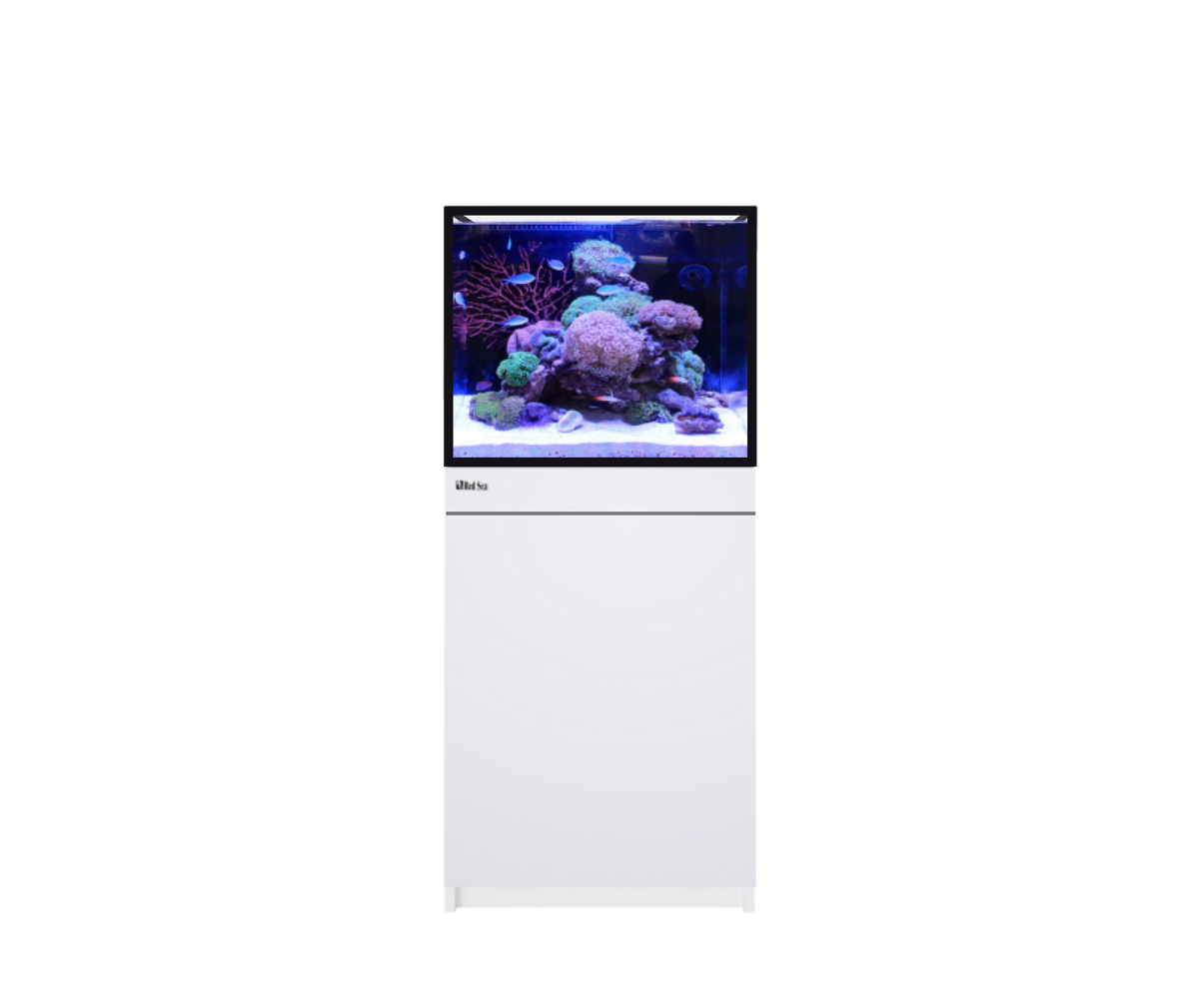

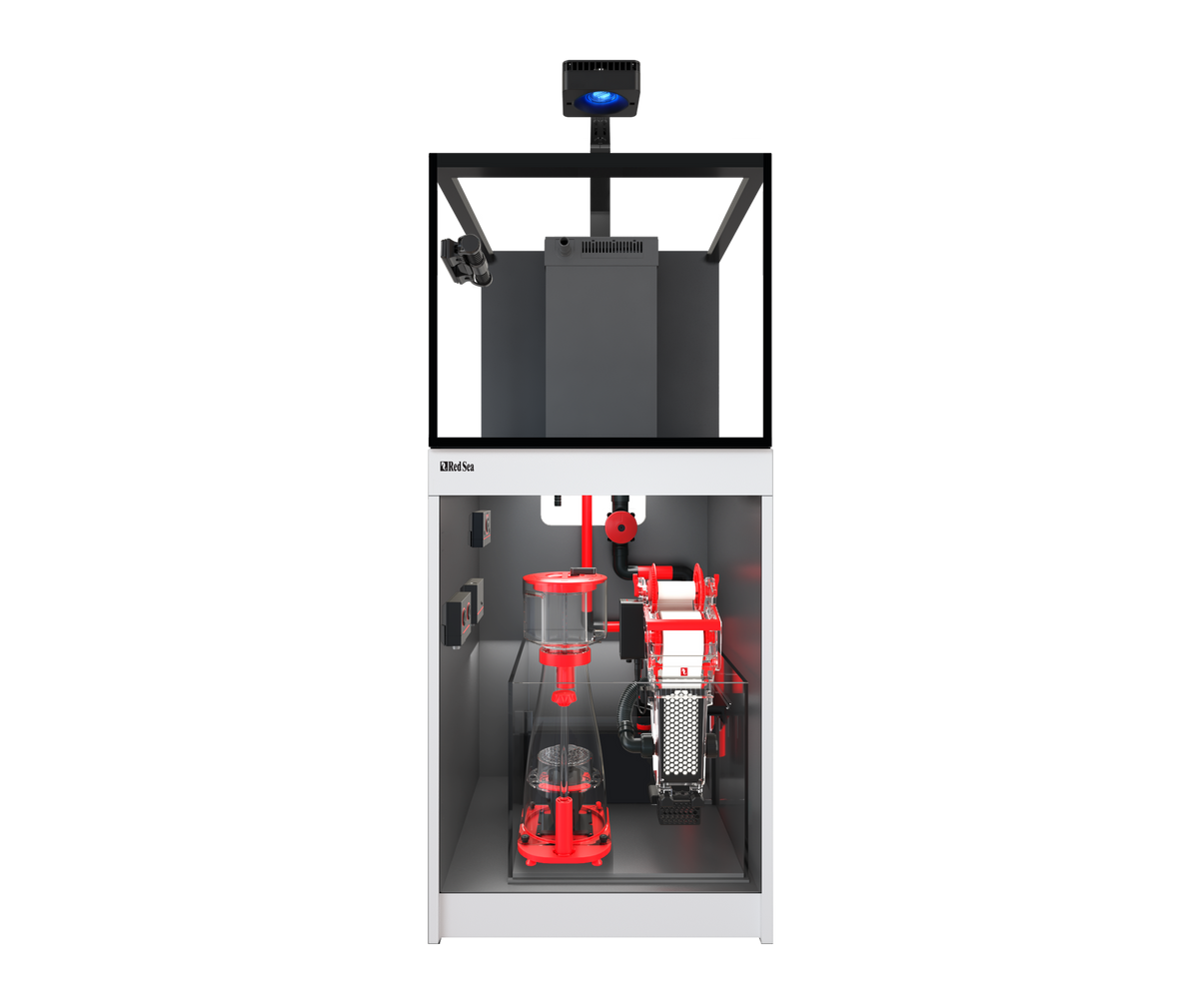

White: A bright, contemporary finish well suited for coastal homes and light interiors.

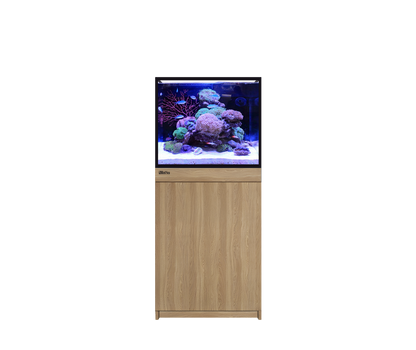

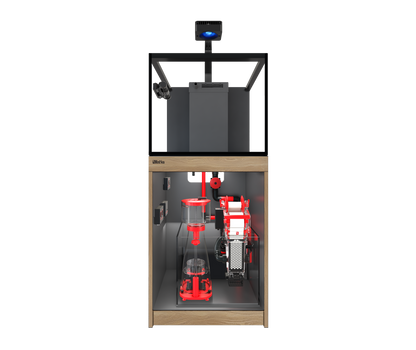

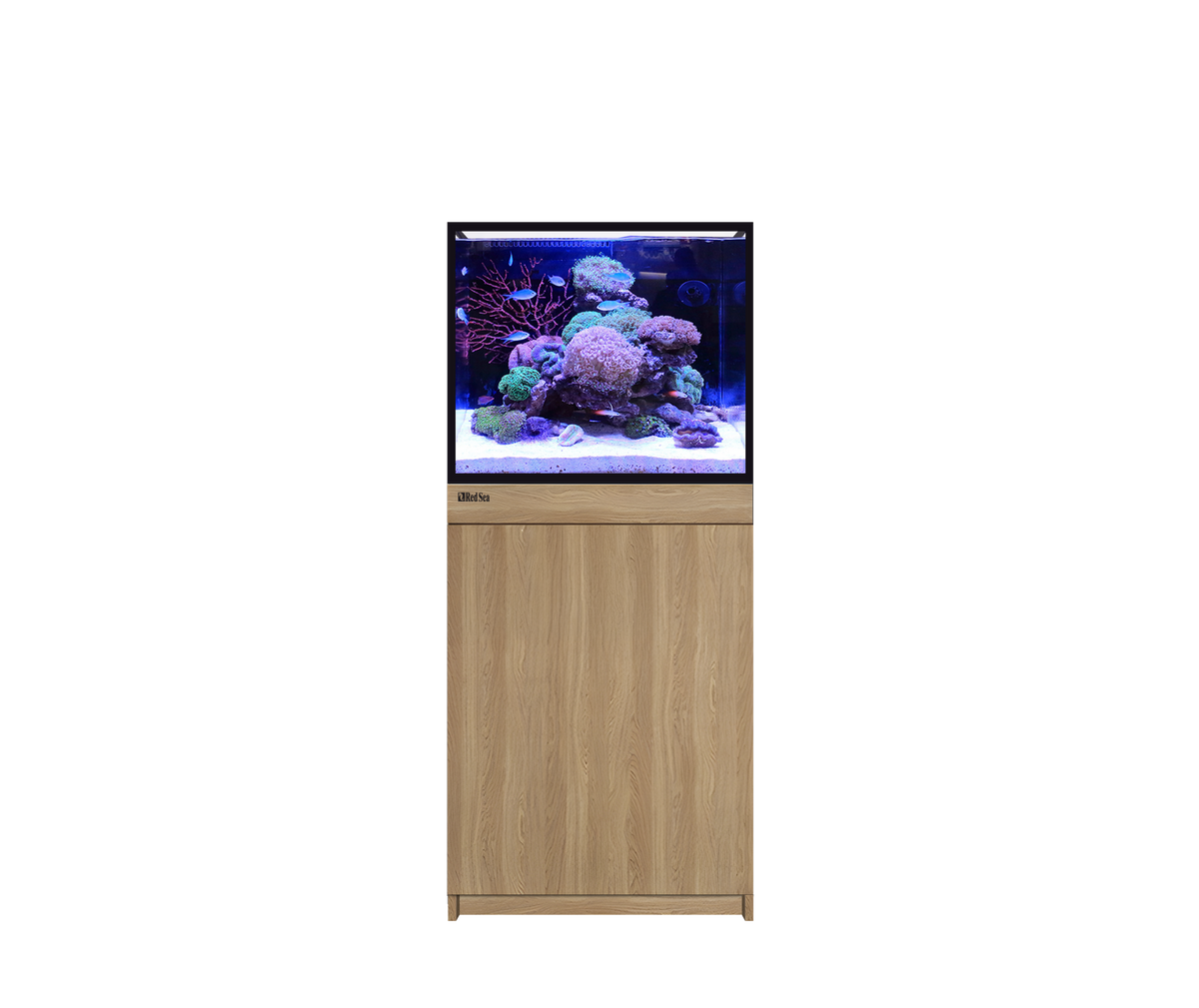

Classic Oak – New: A warm, natural wood-inspired finish that gives the aquarium a furniture-like appearance and complements wood floors, neutral colors, and natural interior materials.

All three options feature the same cabinet construction and equipment compatibility.

Advanced ReefGate Plumbing

The included ReefGate precision valve allows fine adjustments to drainage for near-silent operation.

Hydrodynamically designed plumbing improves circulation efficiency, while the curved 25mm return outlet directs water into the display.

The central overflow features a removable surface-skimmer comb for convenient maintenance.

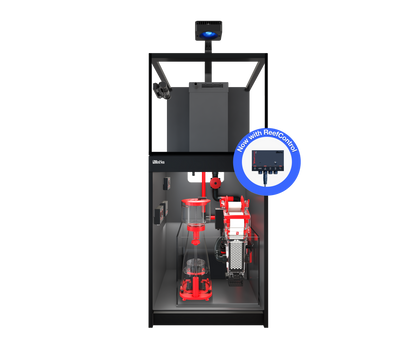

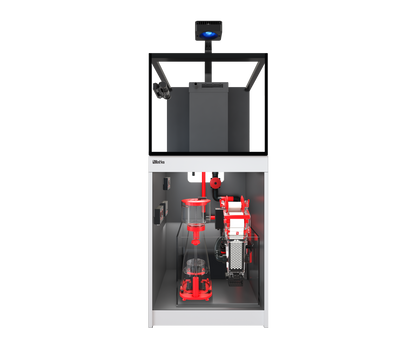

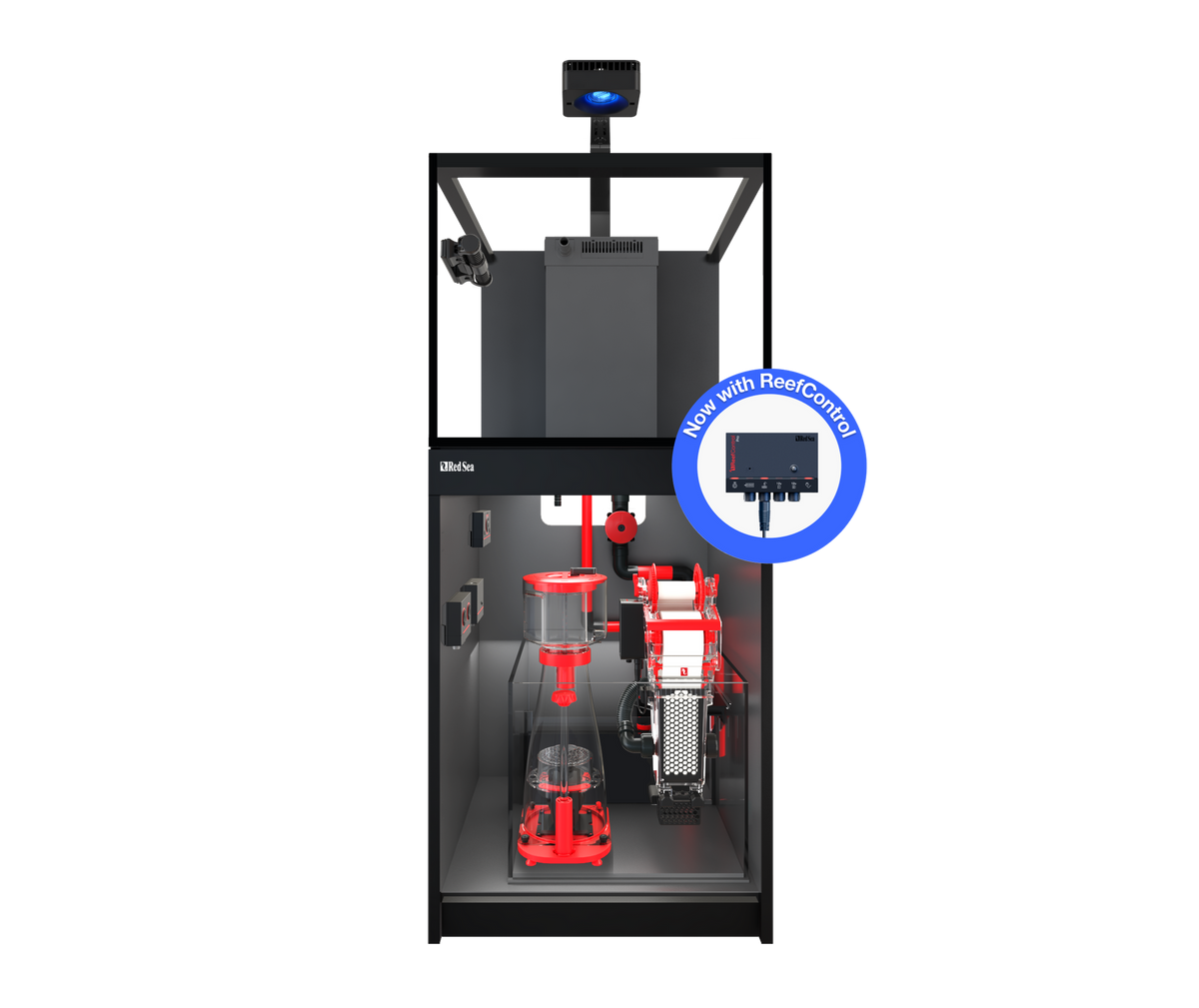

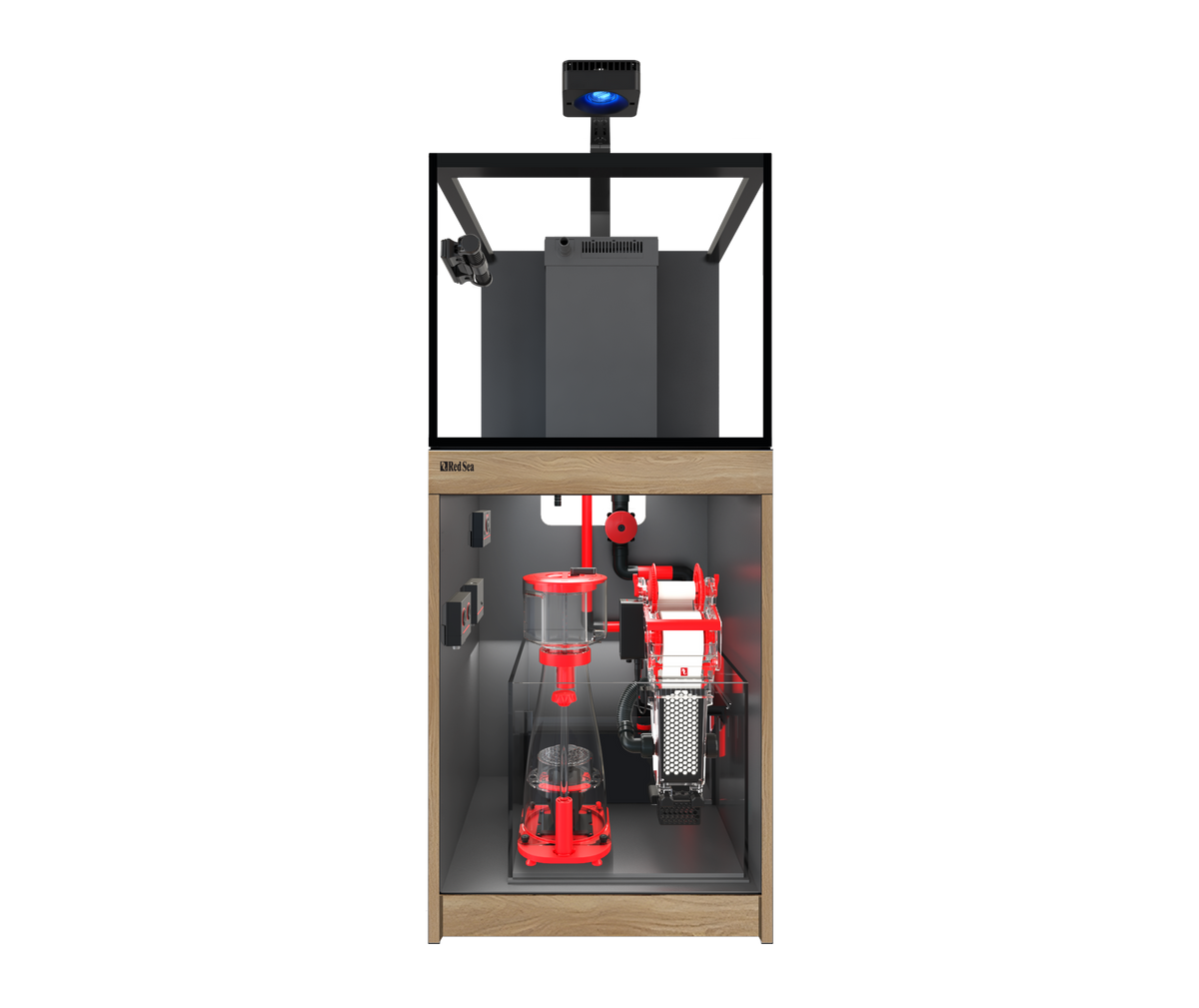

Complete Reef-Ready Equipment Package

ReefLED G2 115 Lighting

The included ReefLED G2 115 provides powerful coral-focused lighting with adjustable intensity, color settings, and schedules through ReefBeat.

A compatible mounting arm is included.

ReefWave 25 Circulation Pump

The ReefWave 25 delivers up to 1,980 GPH of broad cross-flow circulation.

Customizable flow patterns help distribute water throughout the display and reduce stagnant areas.

ReefRun G2 4000 Return Pump

The efficient DC-powered ReefRun G2 4000 provides adjustable flow of approximately 530–1,060 GPH.

Its variable-speed operation allows convenient adjustment of circulation between the aquarium and sump.

ReefMat 250 Automatic Roller Filter

The ReefMat 250 automatically advances its filter fleece to remove suspended waste and debris.

This reduces the need for frequent filter-sock maintenance and helps maintain consistent mechanical filtration.

REEFER DC 300 Protein Skimmer

The REEFER DC 300 efficiently removes dissolved organic waste from aquarium water.

Its self-leveling technology helps maintain stable skimming performance and reduce the risk of over-skimming.

Integrated Digital Automatic Top-Off

The ReefControl ATO module automatically replaces evaporated freshwater using its digital water-level and temperature sensor.

This helps maintain consistent salinity and simplifies daily aquarium maintenance.

What's Included

• REEF-FRAME 170 ultra-clear glass aquarium

• Marine-spec plywood cabinet in selected finish

• REEF-SPEC sump and plumbing with ReefGate valve

• 1 × ReefLED G2 115 lighting fixture

• 1 × ReefLED mounting arm

• 1 × ReefWave 25 circulation pump

• 1 × ReefRun G2 4000 return pump

• 1 × ReefMat 250 automatic roller filter

• 1 × REEFER DC 300 protein skimmer

• ReefControl Pro Controller

• ReefSense pH and temperature probe

• Digital ReefControl ATO module

• Slide-Out Control Panel

Aquarium Specifications

Specification	Details
Model	REEF-FRAME MAX 170
Display Volume	35.9 Gallons
Sump Volume	10.3 Gallons
Total System Volume	46.2 Gallons
Display Dimensions	23.6" L × 20.1" W × 20.9" H
Overall System Height	53.9"
Front Glass	10mm
Side Glass	12mm
Bottom Glass	10mm
Rear Glass	8mm
Bracing	Eurobrace
Return Outlets	1 × 25mm
Cabinet Material	Marine-Spec Plywood
Cabinet Finishes	Black, White, Classic Oak
Included Controller	ReefControl Pro
Manufacturer Warranty	Up to 5 Years

Manufacturer Warranty

Red Sea provides a standard 3-year manufacturer warranty on REEF-FRAME aquariums.

Register your new aquarium within 90 days of purchase to receive an additional two years of coverage at no extra cost.

Warranty coverage is subject to Red Sea's terms and conditions.
